Hydrogen Ion Selective Permeable Membrane

anion-exchange-membrane

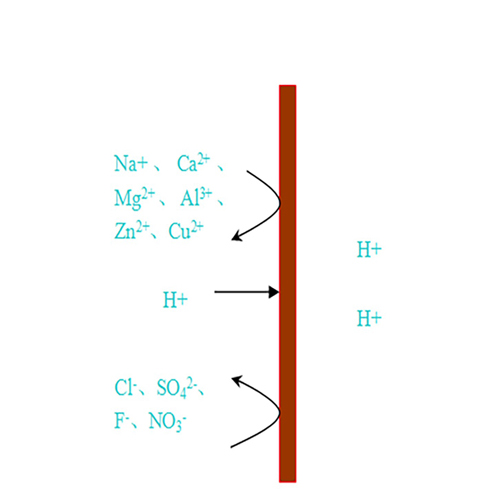

The hydrogen ion-selective permeable membrane is independently developed by Tingrun and has high selectivity for hydrogen ions. In addition to the characteristics of ordinary cation membranes, this cation membrane has extremely high selectivity for hydrogen ions and excellent retention effects for other cations such as Na +, Ca 2+, Mg 2+, Fe 3+, Al 3+, Zn 2+, etc., with a retention rate of over 95%. Therefore, this membrane can be used to separate salts and acids. If the precipitation of heavy metal ions is not considered, it can achieve 100% separation of acids and salts.

Hydrogen-Selective-Membrane manufacturer

Characteristics for

Hydrogen Ion Selective Permeable Membrane

Homogeneous anion Exchange Membrane AEM

Chemical Name:Hydrogen Ion Selective Permeable Membrane

Synonyms:Hydrogen Selective Permeable Membrane

CAS NO.:31175-20-9

Application:To separate the acid and salts, electrodialysis

Size:40*20cm, 80*40cm, 110*55cm, 120*60cm

Min. Order:1 piece

Payment Terms:L/C,T/T,Western Union,Paypal

Lead Time:10-15 days

Month Capacity:5000 square meters

Technical Index:

Item

Index

Appearance

Light gray/brown

Working temperature

15-40 Degree

Thickness(mm)

0.15-0.18

Perm-selectivity (%)

>97

Area Resistance(omega.cm2)

2.5-3.5

Rupture strength

>0.25Mpa

Scope of usage

To separate the acid and salts


Application:

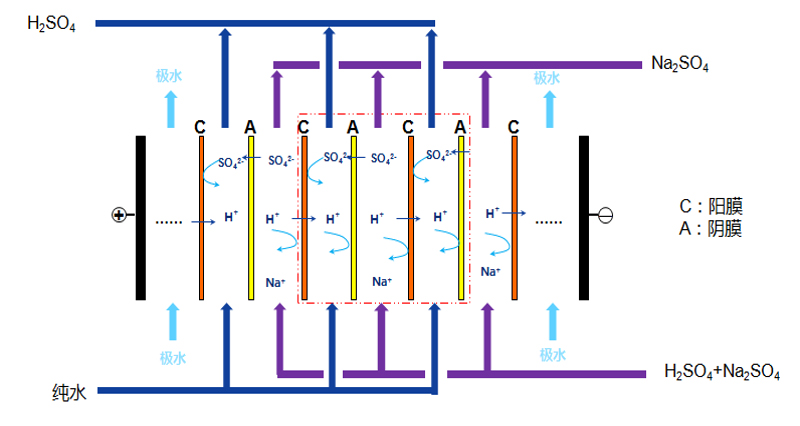

Due to the unique property of hydrogen ion selectivity, the cation membrane can be stacked with an acid-resistant anion membrane to form an electrodialysis unit. This unit can then be used to separate acid and salt in acidic wastewater through electrodialysis, while also concentrating the acid.
