Perfluorosulfonic acid ion exchange membrane N-11 series

Phosphate

Perfluorosulfonic acid ion exchange membrane, also known as perfluorosulfonic acid proton exchange membrane and cation exchange membrane, is a solid polymer electrolyte, a strong acid type ion exchange membrane, with good chemical and thermal stability, low voltage, and low membrane resistance. High conductivity, good hydrophilicity, high water content of the membrane, high mechanical strength, etc., can be used under harsh conditions such as strong acid, strong alkali, strong oxidant medium and high temperature. Due to its own characteristics, perfluorosulfonic acid Proton exchange membranes are not only used as key components of proton exchange membrane fuel cells, but also widely used in the chlor-alkali industry, all-vanadium flow batteries, hydrogen production by water electrolysis, electrochemical synthesis, and gas sensors.

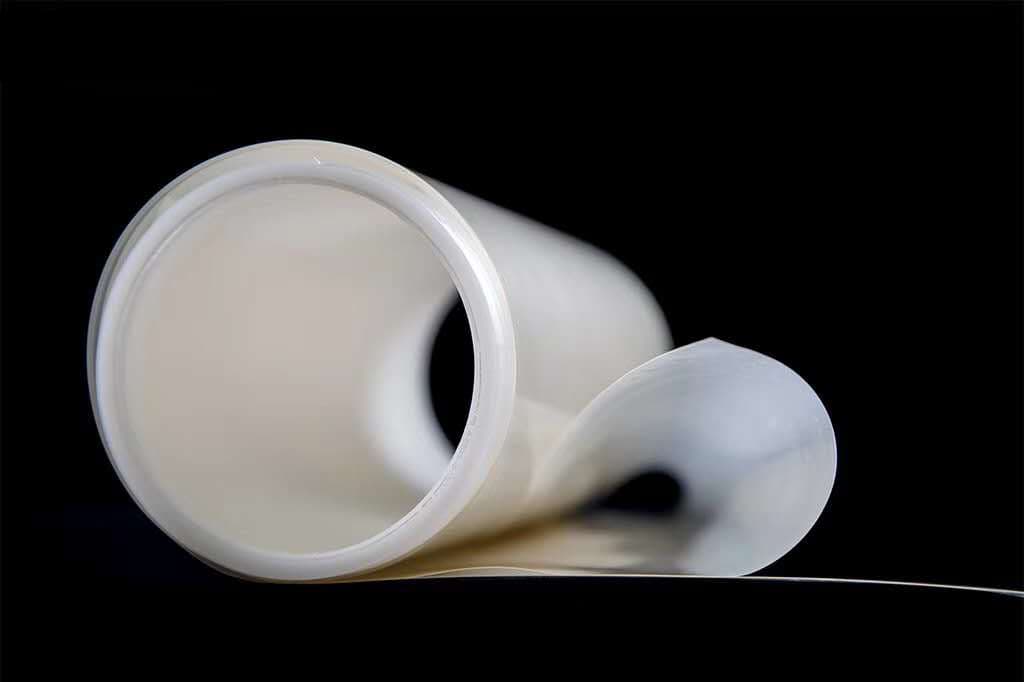

Perfluorosulfonic acid ion exchange membrane manufacturer

Characteristics for

Perfluorinated Ion Exchange Membrane N-11 Series

Perfluorinated-ion-exchange-membrane

Chemical Name:Perfluorinated Ion Exchange Membrane N-11

Synonyms:Perfluorinated proton exchange membrane,perfluorinated ionomer membrane,proton exchange membrane,ion exchange membrane,Perfluorosulfonic acid membrane, Nafion Membrane

CAS NO.:31175-20-9

Appearance: White membrane

Formula:(C7HF13O5S . C2F4)x

Application:hydrogen fuel cell,vanadium flow batteries, chlor-alkali industry for the production of NaOH and KOH, water treatment device

REF. FOB Price:USD100-1000/Piece

Min. Order:1 piece

Payment Terms:L/C,T/T,Western Union,Paypal

Lead Time:10-15 days

Month Capacity:30000 square meters

Technical Index:

Physical and Other Properties
Physical Properties
Measured at 50% RH, 23 C

Values

Test Method







Tensile Strength MD, max., MPa

36

ASTM D882

Tensile Module, MPa

410

ASTM D882

Elongation at break, %

190

ASTM D882

Specific Gravity

1.98









Other Properties

Values

Test Method

Conductivity, S/cm

0.10

GB/T 20042.3-2009

Acid capacity, meq/g

1.0

GB/T 20042.3-2009







Hydrolytic Properties

Values

Test Method

Water Content, %

5.0+-3.0

ASTMD570

Water Uptake, %

50.0+-5.0

ASTMD570

Thickness Change,
from 50% RH, 23 C to water soaked, 23 C
from 50% RH, 23 C to water soaked, 100 C


10.0%
18.0%



ASTM D 756
ASTM D 756

Linear Expansion,
from 50% RH, 23 C to water soaked, 23 C
from 50% RH, 23 C to water soaked, 100 C


10.0%
15.0%



ASTM D 756
ASTM D 756

1, Measurements taken with membrane conditioned to 23 C,50% RH.
2, Conductivity measurements at 23 C,100% RH.
3, A base titration procedure measures the equivalents of sulfonic acid in the polymer, and uses the measurement to calculate the acid capacity or equivalent weight of the membrane.
4, Water content of membrane conditioned to 23 C and 50% RH (dry weight basis).
5, Water uptake from dry membrane to conditioned in water at 100 C for 1hour (dry weight basis ).

Thickness of the PFSA membranes

Type

Thickness(um)

N-11

N-111

25

N-112

51

N-1125

64

N-113

76

N-1135

89

N-114

102

N-115

127

N-117

183

N-1110

240

Application:

The PFSA membranes N-11 are non-reinforced films based on PFSA polymer, a perfluorosulfonic acid in the acid (H+) form. Our PFSA membranes perform as a solid polymer electrolyte in fuel cells and other applications in electrochemistry and separation technology for a variety of electrochemical process, especially in the redox flow battery (RFB).
The membranes are located between the cathode and anode and transports protons formed near the catalyst at the hydrogen electrode to the oxygen electrode thereby allowing the current to be drawn from the cell. The membranes show significant improvements in features such as better resistance to chemical attack and longer operating durability in the redox flow battery (RFB).
